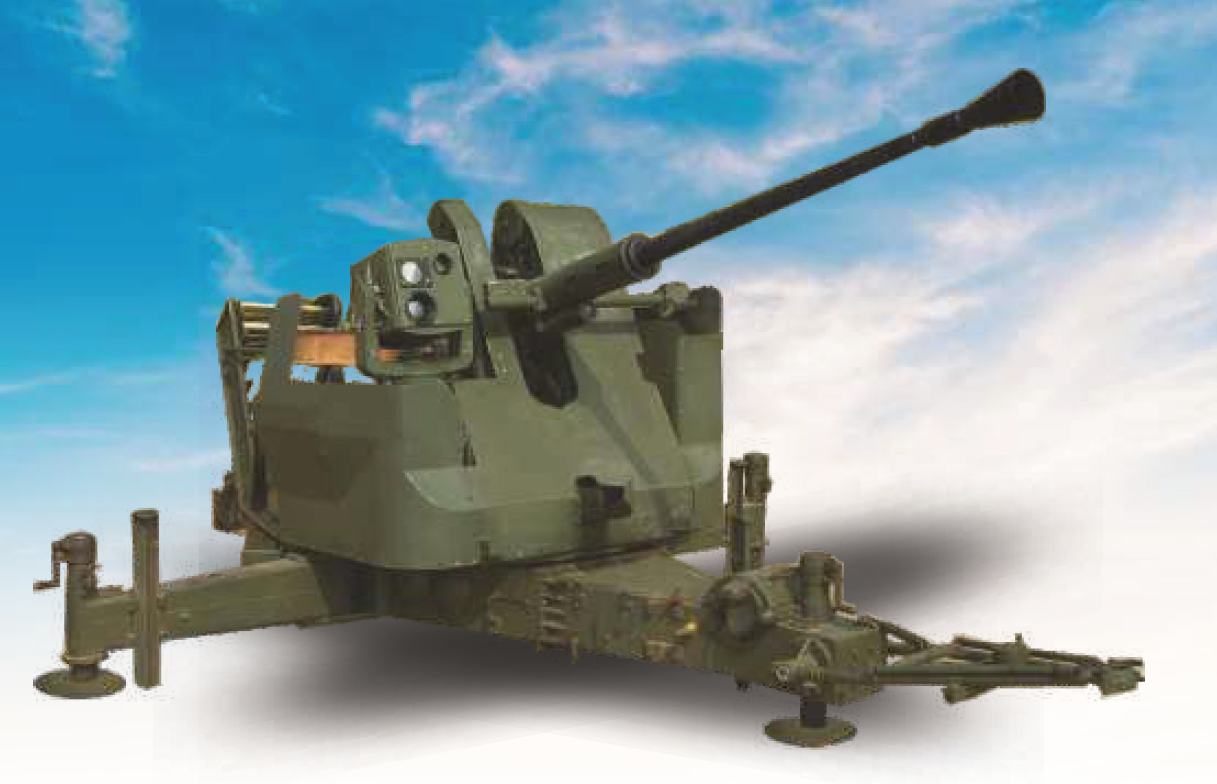

UPGRADED L-70 GUN
L-70 Gun Upgrade is a fusion of the latest technologies in the areas of electrical servo drives, Electro-Optical Fire Control System and Video tracking.
SALIENT FEATURES
- All electric drives to replace existing hydraulic drives.
- Integrated Fire Control System with Optronic Sight consisting of Eye Safe LRF, DLTV and TI.
- Autonomous ballistic computation on gun based on round to round basis.
- Silent operation of the gun with batteries.
- Interface with TC / FC Radars.

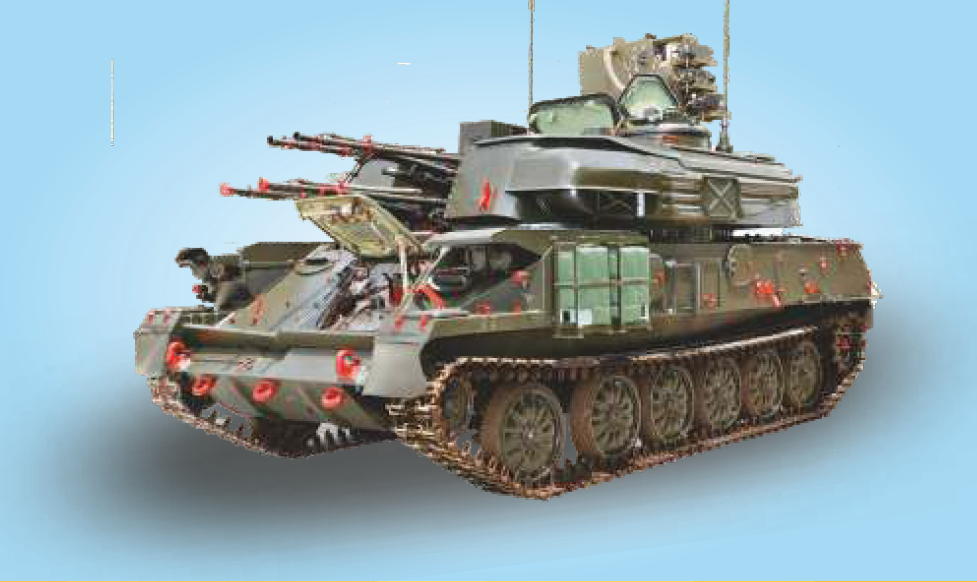

SCHILKA UPGRADE
The Upgraded Schilka system is a ZSU 23 mm, 4 barrel, advanced all weather self-propelled Air Defence Weapon System primarily designed to protect mobile formations against aircraft and helicopters. The Upgraded Schilka provides drastic improvements in operational performances, accuracies and power consumption. It consists of state of the art 3D planar Active phased-array solid state Radar and Electro Optical Fire Control system that ensures Day and night capability for detection, acquisition and tracking of targets. The various phases of operation such as rapid acquisition of fast moving target, determination of the aiming point for the guns and ballistics of the projectiles, rapid laying of the guns on to the target and firing can be carried out when the vehicle is on the move or at halt.
SALIENT FEATURES
- State-of-art coherent, 3D planer Active Phased-array solid state search/track Radar.
- Electronic Beam Steering in Elevation.
- TWS search capability in circular and sector scans
- Single Target Tracking (STT) and Multi Target Tracking (MTT) Capability.
- Advanced ECCM capabilities.
- Cueing to target data received from external surveillance radar.
- Modern digital Fire Control Computer.

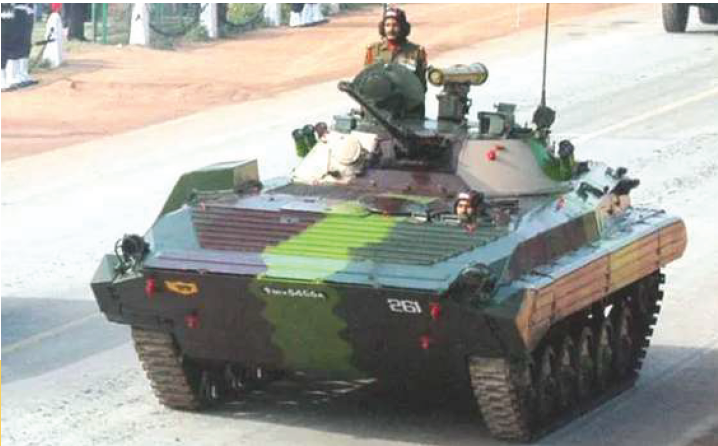

ELECTRONIC UPGRADE OF BMP-II TANK
BMP-II has been in service for more than 30 years and hence upgrades are under way to enhance its extended life. The present sighting system is having only direct viewing optics with IR based nigh viewing facility, it is highly difficult during the nigh operation. The sighting systems are not independently stabilised and hence operator fatigue is more during its operation or during the engagement. The present fire control system is analog based and hence the engagement as well as firing accuracy is not up to the mark. Existing missile engagement through a separate day viewing sigh through which the Gunner alone could engage the potential target only in day time.
SALIENT FEATURES
- The upgrading of the BMP-II includes the following items:
- a. Gun Control system of BMP II.
- b. Fire Control system of BMP II
- c. Sighting System for the Armoured Fighting Vehicle
- d. NBC protection systems for AFVs
- f. Digital communication system for AFVs
- Fire detection and suppression systems for AFVs

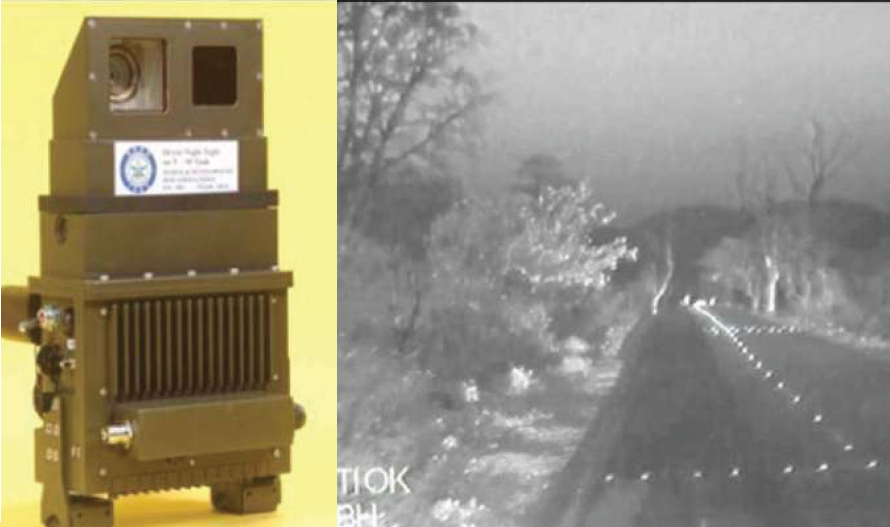

ADVANCED DRIVER NIGHT SIGHT
A-DNS comprises of an advanced uncooled Thermal Imager and a day camera having low light level imaging capability. It incorporates electronic image fusion of TI and Day camera. It provides tank driver the capability to drive tank in dark with headlights switched OFF. Driver can select TI or Day camera or Fused image (TI + Day Camera) on display.
SALIENT FEATURES:
- Form fit configuration for AFVs
- Fused mode allows viewing of thermal image and LED/Beacon lights in the same image during night enhanced visibility

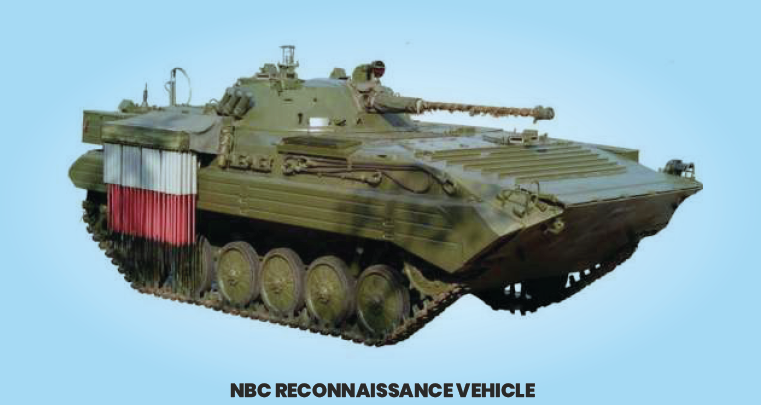

NBC RECONNAISSANCE VEHICLE
Nuclear, Biological and Chemical (NBC) Recce Vehicle on a tracked vehicle is a NBC protected mobile platform for diagnosing the existence of nuclear, biological and chemical agent in the atmosphere during the NBC warfare in order to cordon the contaminated areas and protect the living beings. It carries out survey, detection, identification, monitoring and marking of the radiological and chemically contaminated areas. It is also equipped with sample collection device, which can collect the contaminated soil and liquid samples. It can also transmit data to command centre.
SALIENT FEATURES:
- Communication facility for data transmission to command centre
- Navigation facility to identify the location of contaminated zones in the map
- Portable Dose meter and Dose Rate meter for measurement of Dose received by crew
- 30 mm gun on the turret
- Software for data integration
- On line transmission to command centre

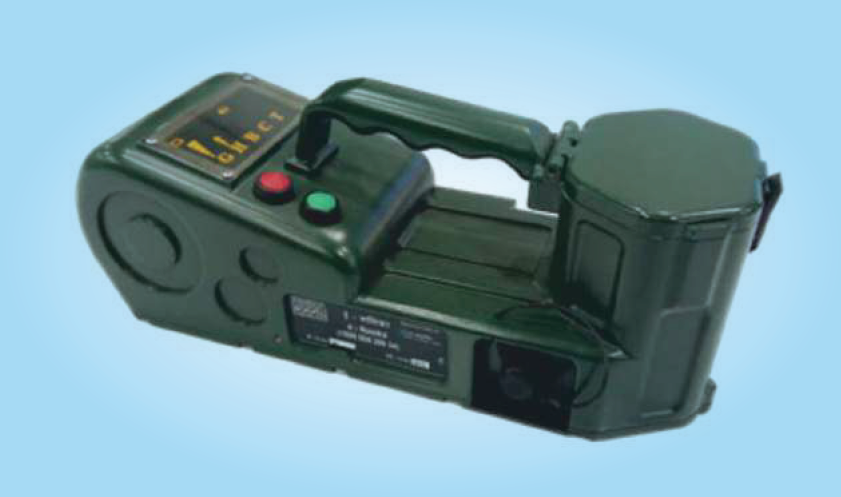

CHEMICAL AGENT MONITOR
Gas Chromatograph based electronic-nose vapour detector. It is capable of detection of Chemical Warfare Agents (CWA) down to few parts per billion concentration levels within a minute. It has high endurance and high efficiency.
SALIENT FEATURES:
- Targeted Compounds: Sarin, Soman, Tabun, VX, Lewisite (Nerve Agents), Sulphur Mustard (Blister Agent), Phosgene (Choking Agent), Hydrogen Cyanide (Blood Agent)
- Sensitivity: Nerve < 7 ppb, Blister < 77 ppb, Blood < 20 ppm, Choking < 5 ppm
- Size: 30 x 10.5 x 12 cm³
- Continuous operation: > 8 hours
- Weight: 3.1kg with batteries
CORNER SHOT SYSTEM
Corner Shot System is an ergonomically designed portable weapon system that enables user to see, aim and fire an armed target without exposing himself to any counterattack.
It provides a real time image of the target area, located around a corner to the user, with capability to aim and engage targets accurately during day and night.
To further enhance the capabilities of soldier and weapon during CQB / Night / Low light conditions Corner Shot System is equipped with in-built IR capabilities making it perfect for counter terrorism and urban combat operations.
SALIENT FEATURES:
- Compact & Light weight
- Cross Hair Reticule
- Standard Picatinny
- Inbuilt IR Illuminator
- Combined Zeroing Mechanism
- Day/Night Mode Operation
- Accurate Laser Aiming Device
- Quick out of sight target acquisition

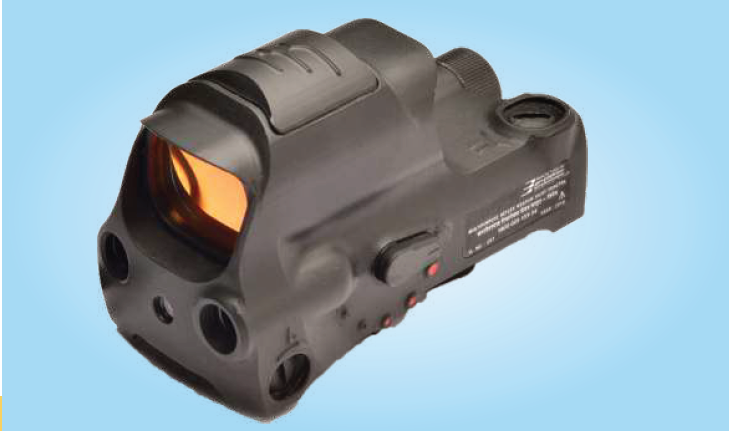

MULTI PURPOSE REFLEX SIGHT (TRINETRA)
It is a compact, light-weight, Parallax free and rugged weapon sight for instant target acquisition, which can be easily integrated with weapons such as Assault Rifles (5.56mm and 7.62mm), Carbines like JVPC, etc. Trinetra is equipped with Laser Spot Designators, which make it an all-in-one versatile sight for all possible combat scenarios.
SALIENT FEATURES:
- Faster Target Acquisition
- Facilitates Both Eyes Open Shooting
- Accurate Aiming with Precise Reticle
- Large Window for Easy / Quick operation
- Reticle Brightness adjustment
- In-built Invisible IR Laser Designator
- In-built LDR for Auto Intensity Control
- Combined Zeroing Mechanism
- Low Light / Night Operation Mode
- Ultra Compact & Lightest in its category

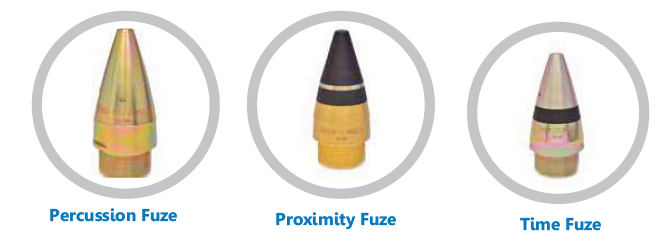

ELECTRONIC FUZES
ARTILLERY FUZES
- Available in 3 variants (Percussion, Proximity and Time) suitable for 3 types of gun calibres namely 105MM (Mode-3), 130MM (Mode-2) and 155MM (Mode-1).
- Fuze Safety Distance: Min 100 meters from Muzzle End
- Shelf Life: Min 15 years under sheltered storage
- Safety: As per MIL-STD-1316 and STANAG 4187
OPERATING MODES:
| Percussion Fuze | Proximity Fuze | Time Fuze |
|---|---|---|
| Point Detonation Super Quick Point Detonation Delay |
Proximity Point Detonation Super Quick |
Time Point Detonation Super Quick |

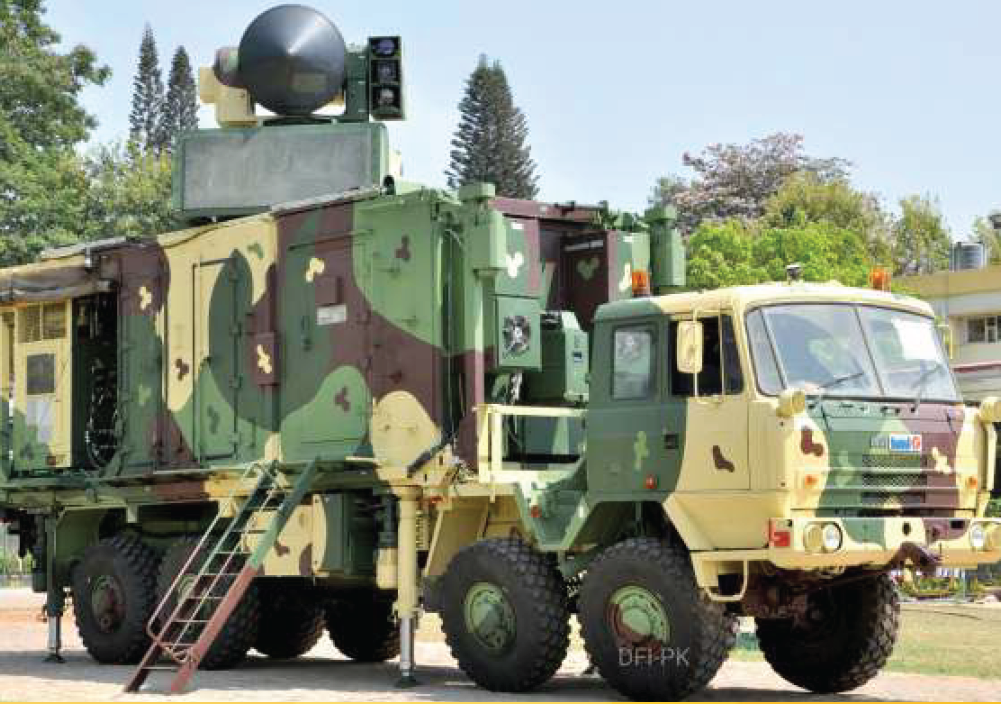

AIR DEFENCE FIRE CONTROL RADAR
Air Defence Fire Control Radar (ADFCR) is a Ground Based Air Defence Radar system with X-band 3D Surveillance using Active Phased Array technology, TWT based Ka-band monopulse Tracking and Electro Optic sensors for passive tracking. It can control and command AD Guns for effective point defence against enemy Fighter Aircrafts, Helicopters and Unmanned Aerial Vehicles (UAV) at short/very-short ranges during day & night under all weather conditions and also in the presence of enemy jamming (ECM).
SALIENT FEATURES
- X Band Active Array Antenna based rotating three dimensional Search Radar
- Integrated IFF Mark XII (S)
- Ka Band Parabolic Reflector based Accurate Monopulse Single Target Tracking Radar
- TV & TI Camera for passive angular tracking and Laser Range Finder (LRF) for Radar Independent Ranging
- On-board Power Supply with UPS back up for Computers
- NBC Filtered, Air-Conditioned Commander's Cabin housing Radar Situation Display & HMI, Optical/Thermal Video Display, Weapon Control Unit and Radio/Data communication equipment.
- Remote Display for unmanned operation of ADFCR

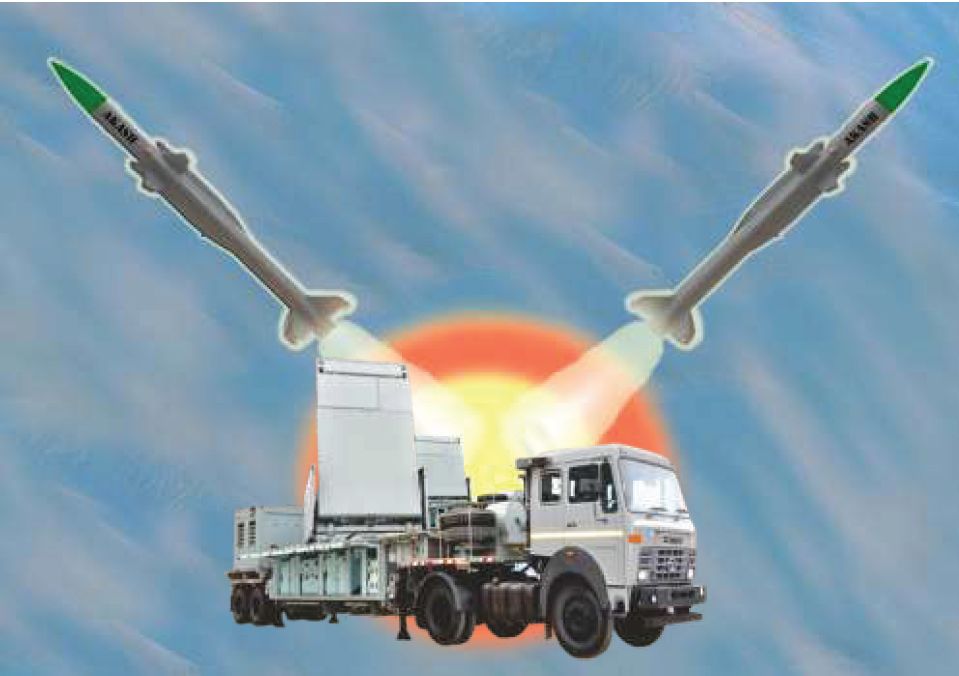

AKASH SURFACE TO AIR MISSILE SYSTEM
The AKASH Air Defence Missile System is a medium range, surface-to-air missile system which provides area air defence against multifarious air threats to mobile, semi mobile and static vulnerable forces and areas. The system has cutting edge features with cross country mobility.
The real time multi sensor data processing and threat evaluation enables simultaneous engagement of multiple targets from any direction. The entire system is flexible, up scalable and can be operated in group and autonomous modes. It employs command guidance and relies on phased array guidance radar to guide the missile till intercept.
SALIENT FEATURES
- Large kill zone
- Simultaneous engagement of many targets with multiple missiles
- Missile Kill Range up to 25 Km
- Tracking of multiple targets in TWS mode by Multi Function Radar
- 80 km coverage by Multi Function Radar and 120 km coverage by Central Acquisition Radar
- 3D measurements of Range, Azimuth and Elevation by Central Acquisition Radar
- High level of automation, enabling effective operation
- High jamming immunity in severe ECM environment
3D LOW LEVEL LIGHT WEIGHT RADAR
ASLESHA is a multifaceted ground based S-Band 3D Low Level Light Weight Surveillance Radar for deployment in diverse terrains like plains, deserts, mountain tops and high altitude regions. Aslesha detects and tracks heterogeneous air targets, including helicopters, fighters and UAVs at low and medium altitudes.
SALIENT FEATURES
- S-Band 3D surveillance for aerial targets at low and medium altitude.
- Detection and tracking of fighter aircraft, helicopters, slow moving micro-light aircraft and UAVs.
- Track while scan up to 100 targets.
- Full 3D capability using multi-beam technology.
- Distributed solid state TR module based semi active antenna with beam shape.
- Electronic tilting/ elevation scanning of stack of beam.
BATTLE FIELD SURVEILLANCE RADAR
Battlefield Surveillance Radar – Extended Range (BFSR-XR) is a man portable, battery powered state-of-the-art Pulse Doppler Surveillance Radar capable of automatically detecting and displaying a diversity of moving targets such as pedestrians, group of men, vehicles, tanks, low flying Helicopters, etc.
SALIENT FEATURES
- Light weight, man portable and fast deployment
- Operates 24 hours a day and under all weather conditions
- User-friendly menu driven interface based on Windows XP
- Instrumented range upto 30 km
- J-band Pulse Doppler Radar with Built In Test Equipment (BITE)
- Track while scan of up to 99 targets
- Low probability of intercept with low peak power
- High resolution, colored, north oriented radar picture displayed on portable PC
WEAPON LOCATING RADAR
Weapon Locating Radar (WLR) has been primarily designed to locate hostile guns, mortars and rockets. WLR, in its secondary role, can track and observe the fall of shot from own weapons to provide corrections to own fire.
Detection, location and tracking of the requisite targets is handled by the advanced algorithms and State-of-the-art hardware. The ability to locate enemy weapons from its first round and transmit the data of the required target to the counter fire elements for retaliatory strike before the target is redeployed is the key feature of the radar.
SALIENT FEATURES
- Low Deployment and Decamp time
- Location of weapons in high density fire environment
- Electronically scanned Phased Array Antenna
- Adaptive Radar resource scheduling
- Coherent TWT based Transmitter
- Low Phase noise, multi channel source
- Highly sensitive three channel, gain and phase matched Receiver
- Programmable Digital Signal Processor using embedded technology with Clutter mapping
COUNTER DRONE SYSTEM
The Counter Drone System is capable of performing real time search, detection, tracking and neutralization (Soft/Hard Kill) of the flying drones (Micro/Small UAVs) in area of responsibility and will provide object details (Optical/Thermal) and RF spectrum display on GUI.
The detection of drone will be done with the help of Radars and RF based detection system. The identification of the target will be done with the help of EO sensor and COMINT (Communications Intelligence). The soft-kill will be executed by RF jamming & Anti GNSS technologies. Laser Directed Energy Weapon (DEW) system will perform the Hard Kill.
SALIENT FEATURES
- Counter Drone system comprises of the following systems
- RADAR System - Drone detection and tracking
- EO System - CCD, IR camera with LRF for detection and tracking of Drone target
- RF Counter Drone System - Drone communication channel RF Detection & Jamming, GPS Jamming / Spoofing System (Soft Kill)
- Laser Directed Energy Weapon System (Hard Kill)
- Command & Control Centre (C3) with Power Source for complete System
