REXROP Loitering Munition Overview
REXROP is the 2nd generation member of IAI's Loitering Munition (LM) family of systems. Based on 35 years of pioneering and innovation in the field of LM systems, initiated with the heritaged REXPY.
Combining capabilities of a UAV and a lethal missile, REXROP searches, finds, identifies, attacks and destroys targets, and performs battle damage assessment. Independent of real-time intelligence, REXROP is uniquely capable against time-critical, high-value, relocatable targets.
Highlights
- Extended loitering at long ranges
- Remarkable and unmatched mission success in combat
- Multi-purpose, multi-mission - land and naval applications
- Autonomous platform operation
- Man-in-the-loop attack, avoiding collateral damage
- EO/IR seeker
- Full hemispherical attack angle
- Attack and abort capability
- Massive warhead to impact various enemy targets
Technical Specifications – RexEyes
Drone Specifications
| Ingress protection | IPX8 |
| Dimensions | 485 x 257 x 354 mm (LxWxH) |
| Weight in air | 8.6 kg (with salt water ballast) |
| Construction | ABS enclosures, Aluminium pressure enclosures, Polycarbonate (PC) windows |
| Buoyancy material | HCP 30 Polymer Foam |
| Maximum rated depth | 305 m |
| Forward speed at normal use | 1.5 m/s (3 knots) |
| Thrusters | 4 x 350 W |
| Run time at normal use | Approx. 2 hrs / 5 hrs |
| Operating temperature | -5 to +35 °C |
Guest Ports
| Guest Port 1 | 5V(2.1A shared), BAT(?A), 20V(2A shared) Protocols: ETHERNET 10/100Base-T/TX, RS232 (or RS485/RS422), I2C, PWM, UART |
| Guest Port 2 | 5V(2.1A shared), BAT(?A), 20V(2A shared) Protocols: ETHERNET 10/100Base-T/TX, RS232, I2C, PWM, UART |
| Guest Port 3 | 5V(2.1A shared), BAT(?A), 20V(2A shared) Protocols: ETHERNET 10/100Base-T/TX, RS232, USB, I2C, PWM, UART |
Camera
| Mechanical tilt | -30 to +30° |
| Vertical field of view | 115° |
| Sensor | Exmor R CMOS, 1/2.8 inch |
| Max image size | 1920 x 1080 pixels |
| Shutter speed | 1/30 s – 1/8000 s |
| Picture max resolution | 2M (1920 x 1080) |
| Picture type | JPEG |
| Video resolution | FHD: 1920 x 1080 25/30 Fps, HD: 1280 x 720 25/30 Fps |
| Video type | MP4 |
| Video storage bit-rate | 2 to 16 MBit/s |
| SD card | 256 GB |
Sensors
| IMU | 3 axis gyro & accelerometer & magnetometer |
| Depth sensor | Resolution: 0.2 mbar, Operating range: 0 to 30 bar |
| Temperature sensor | +/-1 °C |
Controller
| Compatibility | iOS or Android |
LED Lights
| Luminous flux | 3300 Lumen |
| Colour temperature | 5000 K |
| Colour rendering index (CRI) | 90 |
| Adjustable dimming | Yes |
Tether
| Length | 150 m |
| Breaking strength | 100 kg |
| Number of cables | 1 twisted pair (copper) |
| Size | 26 AWG |
Surface Unit Specifications
| Ingress protection | IP64 |
| Dimensions | 38 x 149 x 158 mm (LxWxH) |
| Operating frequency | 2.4 GHz / 5.8 GHz |
| Max Wi-Fi distance | 30 m |
| Battery | 19.48 Wh |
| Runtime/Charging time | 6h |
| Operating temperature | 0 to +35 °C |
| Charging temperature | +10 to +35 °C |
| Transmitter power | 125 mW |
| Operating voltage | 5 - 8.4V |
| USB-C | In: 5 V, 2.1 A - Out: 5 V, 400 mA |
| Internal Antennas | Dual-band 3.8dBi |
Smart Batteries
| Standard Battery | |
| Nominal Voltage | 14.8 V |
| Nominal Capacity | 6500 mAh |
| Nominal Energy | 96.2 Wh |
| Operating temperature | -5 to +35 °C |
| Charging temperature | 5 to 30 °C |
| Normal runtime | Approx. 2 hours |
| High Capacity Battery | |
| Nominal Voltage | 14.4 V |
| Nominal Capacity | 14750 mAh |
| Nominal Energy | 212.4 Wh |
| Max discharge | 25 A |
| Max Charge | 5 A |
| Operating temperature | -5 to +35 °C |
| Charging temperature | 5 to 30 °C |
| Normal runtime | Approx. 5 hours |
Charger Specifications
| Dimensions | 56 x 107 x 64 mm (LxWxH) |
| Operating temperature | 5 to 30 °C |
| Operating rel. humidity | 20% to 80% |
| Input | 20 V, 4 A |
| Output | 16.8 V, 2.5 A / 4.3 A |
| Total output power | 108 W |
| Output port 1 | USB-C PD 90 W |
| Output port 2 | USB-C PD 18 W |
| Output port 3 and 4 | USB-A 5 V, 2.4 A (total max) |
| Manufacturer | Satechi |
| Model | ST-TC108WM |
3D LOW LEVEL LIGHT WEIGHT RADAR
ASLESHA is a multifaceted ground based S-Band 3D Low Level Light Weight Surveillance Radar for deployment in diverse terrains like plains, deserts, mountain tops and high altitude regions. Aslesha detects and tracks heterogeneous air targets, including helicopters, fighters and UAVs at low and medium altitudes.
SALIENT FEATURES
- S-Band 3D surveillance for aerial targets at low and medium altitude.
- Detection and tracking of fighter aircraft, helicopters, slow moving micro-light aircraft and UAVs.
- Track while scan up to 100 targets.
- Full 3D capability using multi-beam technology.
- Distributed solid state TR module based semi active antenna with beam shape.
- Electronic tilting/ elevation scanning of stack of beam.

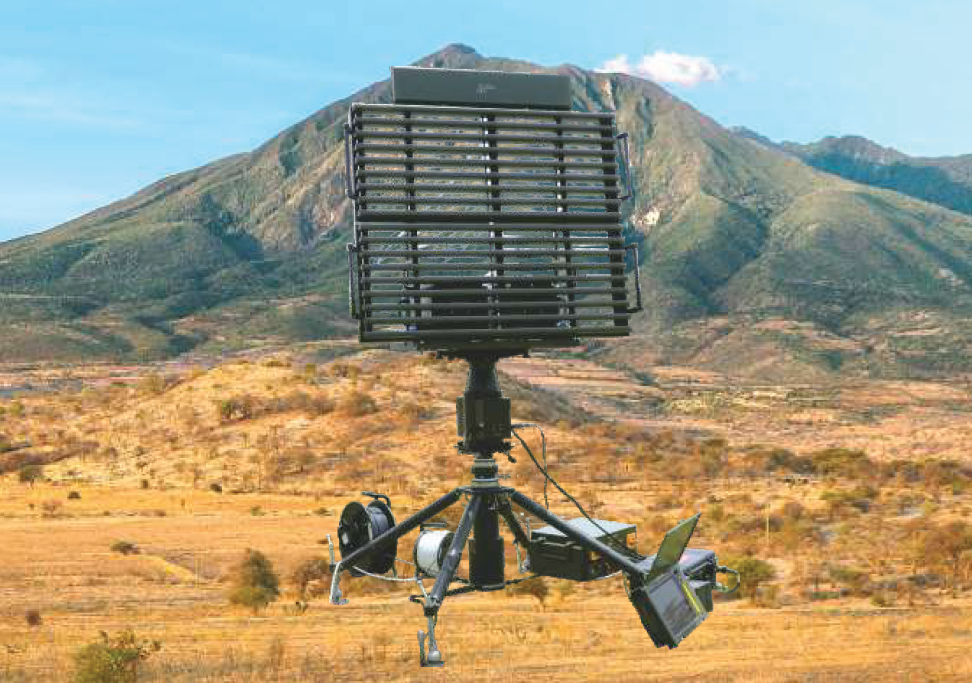

BATTLE FIELD SURVEILLANCE RADAR
Battlefield Surveillance Radar – Extended Range (BFSR-XR) is a man portable, battery powered state-of-the-art Pulse Doppler Surveillance Radar capable of automatically detecting and displaying a diversity of moving targets such as pedestrians, group of men, vehicles, tanks, low flying Helicopters, etc.
SALIENT FEATURES
- Light weight, man portable and fast deployment
- Operates 24 hours a day and under all weather conditions
- User-friendly menu driven interface based on Windows XP
- Instrumented range upto 30 km
- J-band Pulse Doppler Radar with Built In Test Equipment (BITE)
- Track while scan of up to 99 targets
- Low probability of intercept with low peak power
- High resolution, colored, north oriented radar picture displayed on portable PC
WEAPON LOCATING RADAR
Weapon Locating Radar (WLR) has been primarily designed to locate hostile guns, mortars and rockets. WLR, in its secondary role, can track and observe the fall of shot from own weapons to provide corrections to own fire.
Detection, location and tracking of the requisite targets is handled by the advanced algorithms and State-of-the-art hardware. The ability to locate enemy weapons from its first round and transmit the data of the required target to the counter fire elements for retaliatory strike before the target is redeployed is the key feature of the radar.
SALIENT FEATURES
- Low Deployment and Decamp time
- Location of weapons in high density fire environment
- Electronically scanned Phased Array Antenna
- Adaptive Radar resource scheduling
- Coherent TWT based Transmitter
- Low Phase noise, multi channel source
- Highly sensitive three channel, gain and phase matched Receiver
- Programmable Digital Signal Processor using embedded technology with Clutter mapping

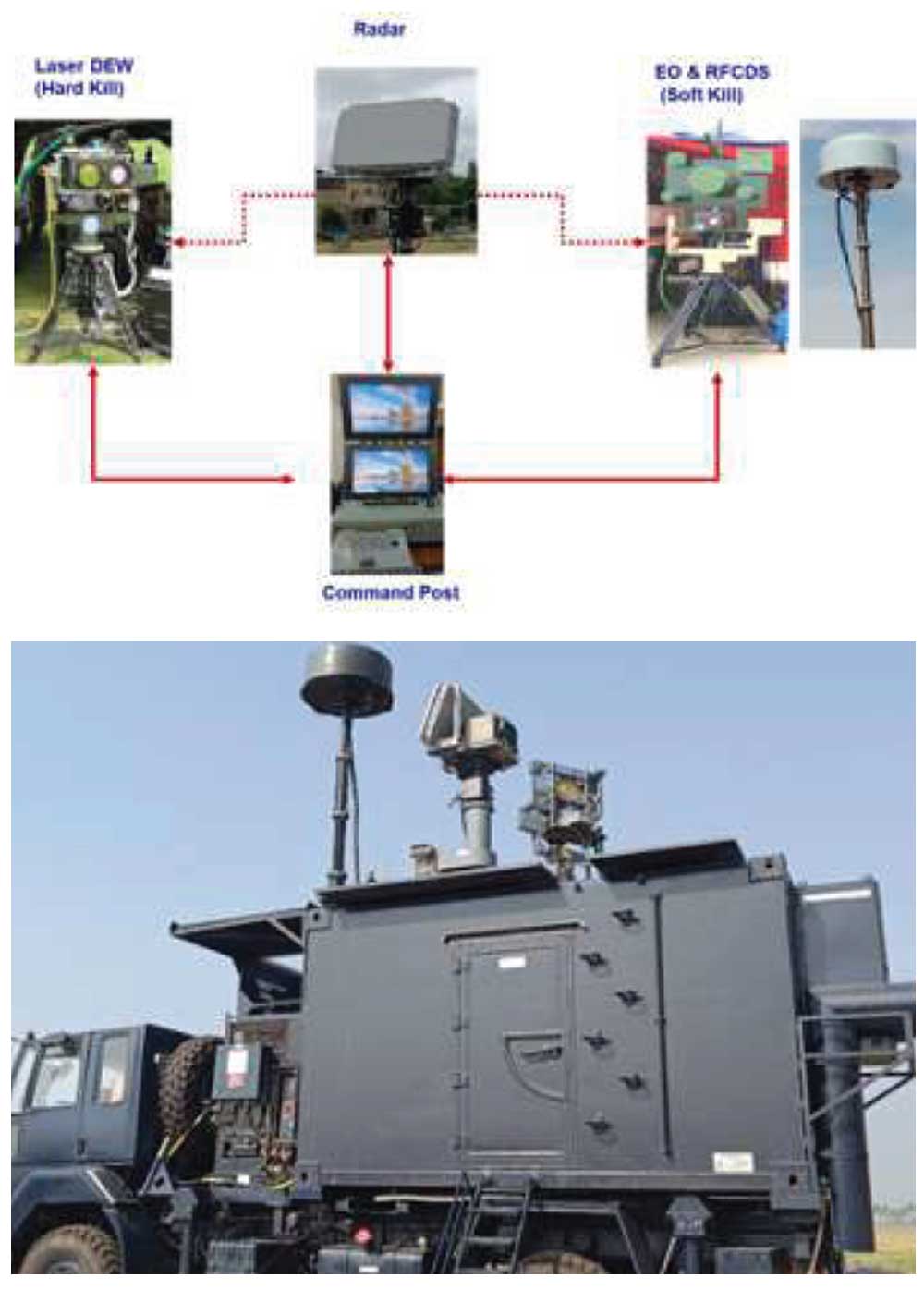

COUNTER DRONE SYSTEM
The Counter Drone System is capable of performing real time search, detection, tracking and neutralization (Soft/Hard Kill) of the flying drones (Micro/Small UAVs) in area of responsibility and will provide object details (Optical/Thermal) and RF spectrum display on GUI.
The detection of drone will be done with the help of Radars and RF based detection system. The identification of the target will be done with the help of EO sensor and COMINT (Communications Intelligence). The soft-kill will be executed by RF jamming & Anti GNSS technologies. Laser Directed Energy Weapon (DEW) system will perform the Hard Kill.
SALIENT FEATURES
- Counter Drone system comprises of the following systems
- RADAR System - Drone detection and tracking
- EO System - CCD, IR camera with LRF for detection and tracking of Drone target
- RF Counter Drone System - Drone communication channel RF Detection & Jamming, GPS Jamming / Spoofing System (Soft Kill)
- Laser Directed Energy Weapon System (Hard Kill)
- Command & Control Centre (C3) with Power Source for complete System
