Armoured Vehicles

Engine

• CATERPILLAR C13 Turbo Intercooler
• 12,5 liters, Diesel, 6 cyl. Water cooled
• The engine is compatible with F54 and F34 fuels
• Engine Power: 600 hp (447 kW) @ 2100 rpm
• Engine Torque: 2.386 Nm @ 1400 rpm

Transmission

• Allison 4500SP automatic transmission with 6 forward and 1 reverse gear speed.
• Fully automatic and torque converter driven.
• Extended torque range, higher GVW capacity and advanced electronic controls

Suspension and Axles

• Fully independent suspension with telescopic type hydraulic shock absorber & helical spring.
• Reliable suspension system of the vehicle results in a low life cycle operating cost

Automatic Fire Extinguishing System (AFES)

• AFES for crew and engine compartments.
• Manual activation is possible. The system consist of:
• 1) Control Unit
• 2) Fire Extinguisher Cylinders
• 3) Optical Detectors
• 4) Thermal Wire Detector

Communication Systems

• 1) Compatible with well known Command, Control, Communications, Computers, and Intelligence (C4I) systems as per customer requirements
• 2) Tactical communication systems provided as option depending on customer requirements

Combat Systems

• Provisions for any new or in-use Battle Management Systems and equipment inside the vehicle.
• Embedded various BMS from different suppliers

Displays

• 1) Computer Display Unit for driver
• 2) Computer Display Unit for personnel compartment
• 3) Ramp Door Control Unit to open/close the ramp door and view the rear or front of the vehicle

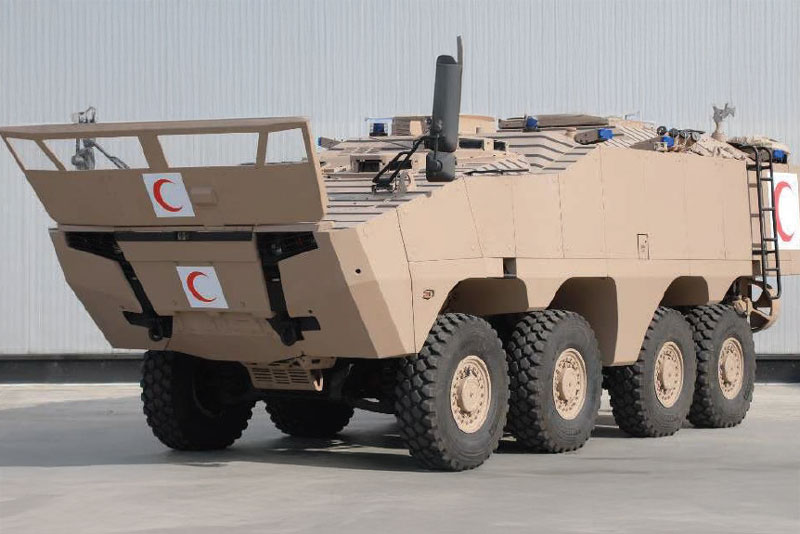

Hydraulic Operated Rear Ramp Door

The hydraulic operated rear ramp door with emergency door. The driver opens and closes the ramp door via the control panel from the driver compartment and check the ramp door access area from the rear view camera. Additionally ramp door opened and closed via Ramp Door Control Unit at rear crew compartment.

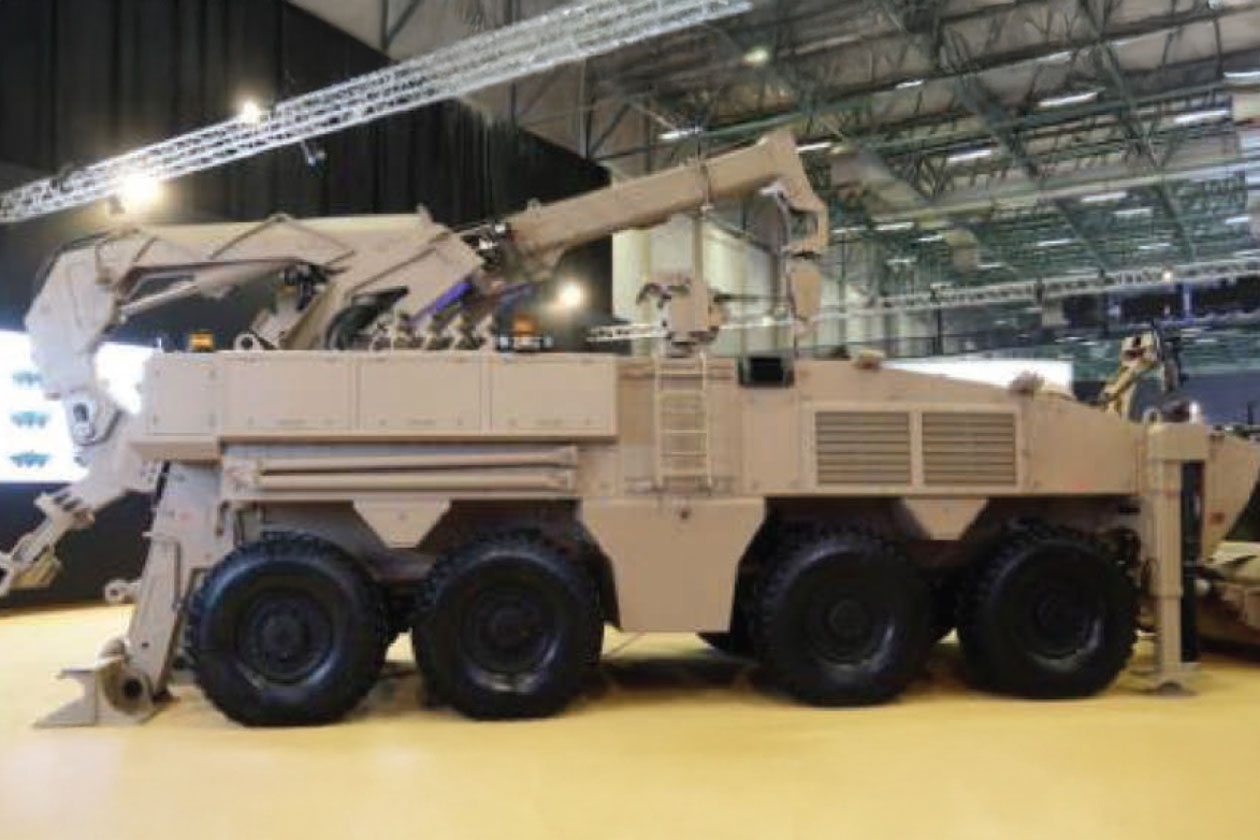

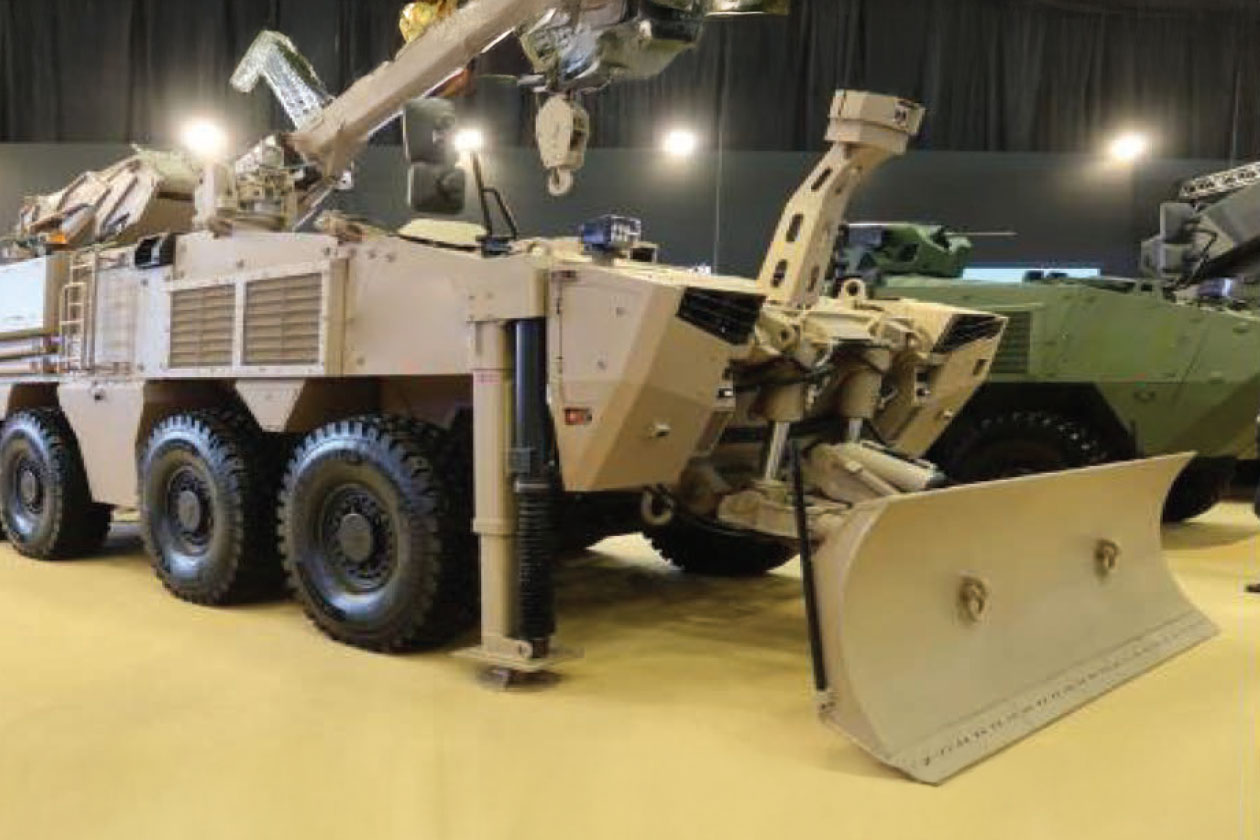

Hydraulic Self Recovery Winch

Electrically controlled, hydraulically actuated at the rear side of the vehicle. Can be used at both front and rear of the vehicle

360 degrees Awareness System

• Cameras located on right and left sides of the vehicle provide crew near awareness of the vehicle on the display in crew compartment.

Tyres

• Michelin XZL 14.00 R20 radial tires with run-flat devices. Compatible with FINABEL 20.A.5.

Central Tyre Inflation System

• All tyres are inflated and deflated by the driver using CTIS system
• Enables drivers to adjust tire pressure while driving to match the relevant ground conditions

Electrical and Electronics Systems

• 24V compliant with military standards.
• Computer controlled electronics system operates and diagnoses all major sub-systems.
• 28 Volt 570 Ampere alternator.
• 2 x 12 Volt 120Ah batteries.

Front/Rear View Thermal and Day Camera

• Rear View Thermal and Day Cameras assist the driver to navigate safely while reverse maneuvering in day and night conditions.
• The vision is displayed on driver’s Computer Display Unit.

Steering

• 1st and 2nd axles are steerable for short turning circle.
• Left Hand Drive, hydraulic assisted power steering with adjustable steering.

Brakes

• Pneumatic service brakes with discs on each wheel, dual circuit with ABS.
• Spring activated, pneumatic release independent park brake system.

Transfer Box

• 2 speed transfer case
• 3 positions (high/low/neutral). High/low range shift unit provides for reliable shifting.

NBC Protection System (Overpressure Type)

• NBC Protection System removes nuclear, biological, and chemical particles from the air and provides ventilation to the over-pressured crew compartment.
• NBC filter complies with NATO AEP-54 standard.
