Rex Gun Tactical - Control The Threat
Rex-Gun Tactical is a fully integrated riflestyle, safe countermeasure against a wide range of drone models. It’s design allows it to be highly portable and is capable of disrupting multiple RF frequency bands simultaneously.
Activation of RF and GNSS (GPS, GLONASS) signal jamming disrupts commercial drone control functions. No damage to drone models or surrounding environment as the drone will:
1. Enter vertical controlled landing, or
2. Return to the starting point (assisting to track the operator)
3. Hover until drone batteries are depleted, initiating controlled vertical landing
Rex Tactical Solution remains intact and available for forensic investigation. Intended disruption of the video transmission to drone operator. The product is packed in a rugged carry case.

Disclaimer:
Rex Gun Tactical has not been authorized as required by the United States Federal Communications Commission (“FCC”). This device is not, and may not be, offered for sale or lease, or sold or leased, in the United States, other than to the United States government, its agencies, and its properly delegated representatives, until such authorization is obtained.
The use of Rex Gun Tactical in the United States by other persons or entities, including, in certain circumstances, state or local government agencies, is prohibited by federal law. Laws limiting the availability of Rex Gun Tactical to certain types of users may apply in other jurisdictions, and any sales will be conducted only in compliance with the applicable laws.
Rex Gun Tactical affects only frequencies at 2.4GHz, 5.8GHz,433Mhz, 915Mhz and GPS/Glonass (optionally). Emergency broadcasts, cellphone communication and other dedicated channels will not be affected.

Features

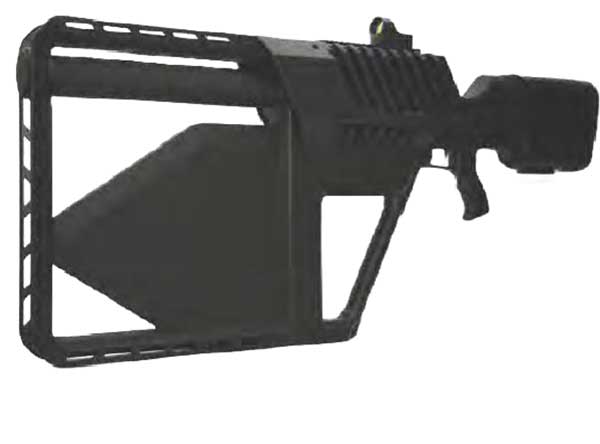

1. Completely application built, Robust Rifle Style Design
- Internal aluminium frame for strength and durability

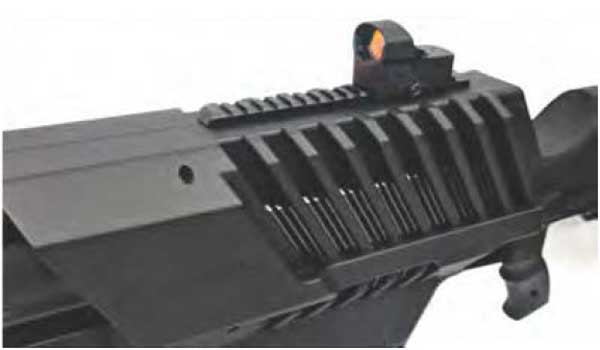

- MIL-STD 1913 Rails for mounting scope
- (supplied with red dot laser sight)
- Angled & horizontal handles for ease of operation and targeting
- Single Point Sling Attachment (supplied)

2. Lightweight, Efficient and Directional Antennas
- Custom Antenna design for operational effectiveness across multiple bands
- Integrated radome for antenna protection
- Balanced design for extended operational use

3. Engineered Electronics
- Integrated electronic modules for compact application
- Optimised power consumption controls (software controlled)
- Thermal management system built holistically into design
- Use of NATO Military approved battery specification
- Ready for operation out of the box, no software updates required

4. Highly Effective User Interface
- Rotary dial switch to enable and select jamming frequencies ranges
- Separate switch for GNSS functionality. Switch designed to reduce accidental activation
- Audio feedback when disruption is activated
- (Optional ‘Mute Audio’ switch included) Warning LED indicators for ‘Low Battery’ and ‘System Error’
- LED indicators for each enabled individual frequency band

Specifications
1. DroneGun Specifications
- Voltage: 14.4VDC
- Effective Range: 1 to 2km (1,093 to 2,187 yards)
- Rifle Weight: 7.3kg (16.1lbs) (including 2 x batteries)
- User Feedback: Visual + Optional Audio
- Colour: Black, Desert Sand

2. Effective Jammer Frequencies
- 433MHz toggle
- 915MHz toggle
- GNSS L2 & GNSS L1 toggle
- 2.4GHz ISM
- 5.8GHz ISM

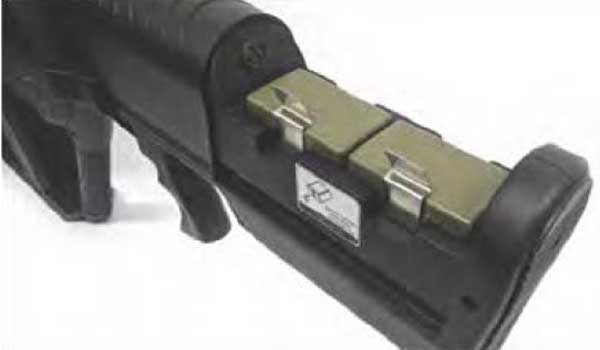

3. Battery Specifications
- Rechargeable Lithium-Ion Battery
- NATO-standard military grade or commercial options available
- Quick release and reload battery operation
- Operating Time: 2 hours (all frequency bands)
- Standby Time: 8 hours
- Safety: Complies and tested against Australian and International SAR safety levels for occupational exposure to Radio Frequency Fields
- Start-up Time: < 3 secs

4. Environment
- Operating temperature: -20°C to +55°C (-4°F to +131°F)
- Designed to IP54
5. Warranty
- 12 months from date of shipment
6. Shipping

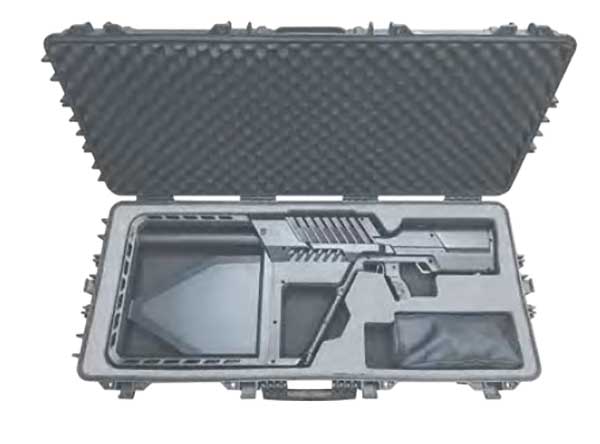

- Ships in a Rugged Carry Case (IP67)
- Dimensions: 1190mm x 530mm x 210mm (46.85” x 20.87” x 8.27”)
- Total Shipped Weight: 18kg (39.7 lbs) - including carry case
- NATO Stock Number: 5865661650137
- HS Code: 8543.70.9090
