Application
Key Capabilities
- Fast Response: instant activation.
- Non-lethal Countermeasure: drones are either forced to ground at the point of jamming or return-to-home (back to the controller’s pre-designated position).
- GNSS Jamming: option to interrupt the drone’s navigation capability, normally forcing it to ground in a controlled descent and landing.
- Immediately interrupts FPV transmissions: Ability to jam both 2.4GHz and 5.8GHz, optional 433MHz and 915MHz bands simultaneously when controller is within effective range.
- Autonomous: integrates with DroneSentinel (becomes DroneSentry) for an automatic detect-and-defeat, or optionally, man-in-the-loop.
- Stand-alone: countermeasure can operate without detection system and is dynamically configurable for a variety of sites.
- Stop the Swarm: effective countermeasure to drone swarm attacks from multiple positions.

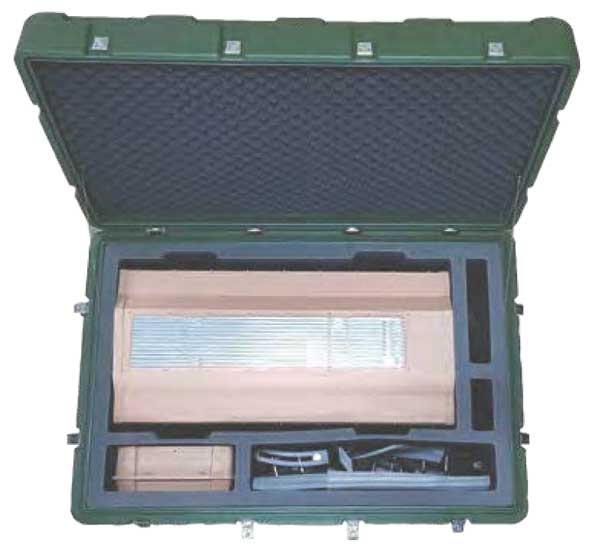

RexCannon in carry case
Disclaimer
RexCannon has not been authorized as required by the United States Federal Communications Commission (“FCC”). This device is not, and may not be, offered for sale or lease, or sold or leased, in the United States, other than to the United States government, its agencies, and its properly delegated representatives, until such authorization is obtained.
The use of RexCannon in the United States by other persons or entities, including, in certain circumstances, state or local government agencies, is prohibited by federal law. Laws limiting the availability of RexCannon to certain types of users may apply in other jurisdictions, and any sales will be conducted only in compliance with the applicable laws.
Jammer affects only frequencies at 2.4GHz, 5.8GHz, 433MHz, 915MHz and GPS/Glonass (optionally). Emergency broadcasts, cellphone communication and other dedicated channels will not be affected.
Specifications
Performance
Max distance: 1 to 2km (1,093 to 2,187 yards)
Beam size: 90° azimuth, 90° elevation
Jammer frequencies:
- 433MHz toggle
- 915MHz toggle
- 2.4GHz ISM
- 5.8GHz ISM
- GNSS L2 & L1 toggle
System can be configured for autonomous jamming when paired with DroneShield detection technologies (DroneSentry).
Power
DC 28V
Input power: 280W
Communications
RF disruption activation control and DC power from the Control Hub to the mast or tower mounted Radome Assembly is via a robust 10m length of cable with MIL-Spec 12-Way connectors. The User GUI communication interface to the Control Hub is via the weatherproof TCP/IP Ethernet RJ45 port located on the Control Hub.
Environment and Installation
Radome Panel Assembly is tower or mast mountable.
Supplied with vertical pole ‘up-tilt’ mounting bracket
Weight without packaging: 19.15kg (42.2lbs)
Designed to IP66
Maintenance
No moving parts, routine visual inspection only
Warranty
12 months from date of shipment
Shipping
HS Code: 8543.70.9090
Note: 4 RexCannon panels are required for 360° jamming
